Head stud diagram

So I was trying to teach my neighbor's son a little about car work, and I'm in the middle of doing a head gasket swap. I managed to get the head off (I have ARP studs, more on that in a bit) and I was showing him how the various parts of a head work and all the other parts that we pulled off like the manifolds, turbo, etc.

I go inside to use the restroom and grab a soda, and when I came back out, the kid had decided to "help" by removing the studs from the block Needless to say I gave him a lesson on don't touch without asking haha. I can't seem to find my FSM, so can someone let me know which holes the longer studs go in, and which ones the shorter ones go in? Thank you very much! Next time I will take reference pics to avoid situations like this! If you can just write as A or B it'd be great i.e.

AAAAAA
BBBBBBB

A is short, B is the longer stud.
Old Sep 1, 2009 | 01:21 PM
  #2
NismoPick's Avatar
The Good Twin

Joined: Aug 2005
Posts: 20,639
From: Wild Wild West, UTAH!
They're only on the intake manifold side, on the cam towers:

EDIT: so from back to front:
(Intake side): AABABAA
(Exh side): BBBBBBB
EDIT x2.... My A = Longer stud.

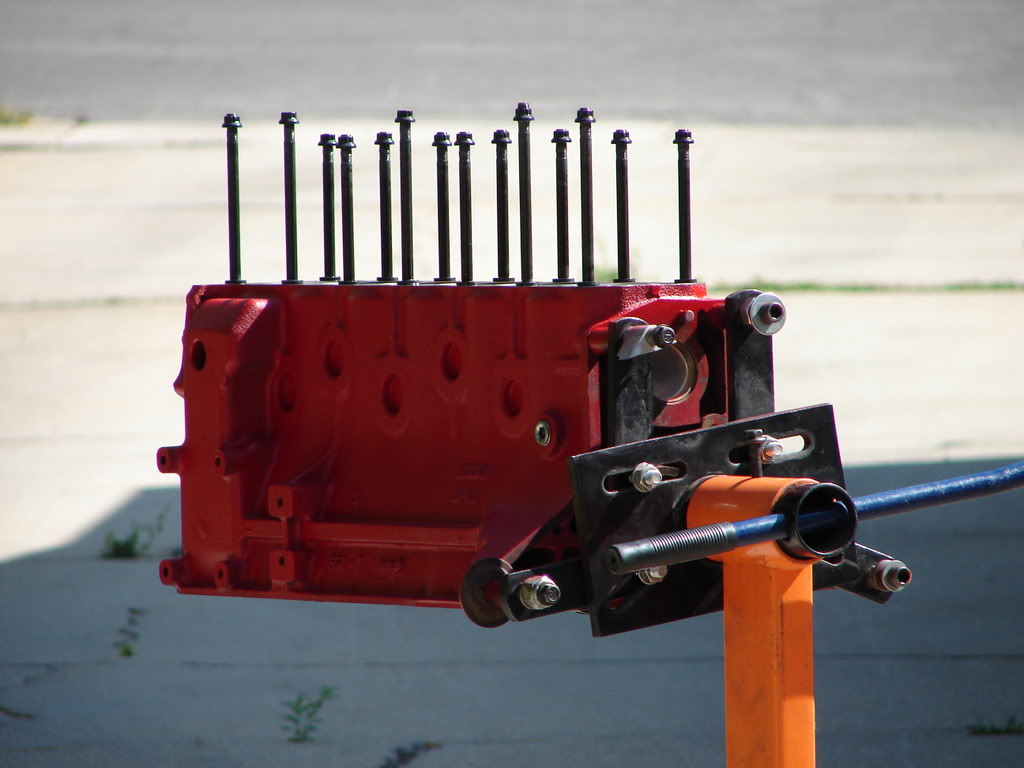

Name:  DSC05547.jpg
Views: 53
Size:  73.7 KB

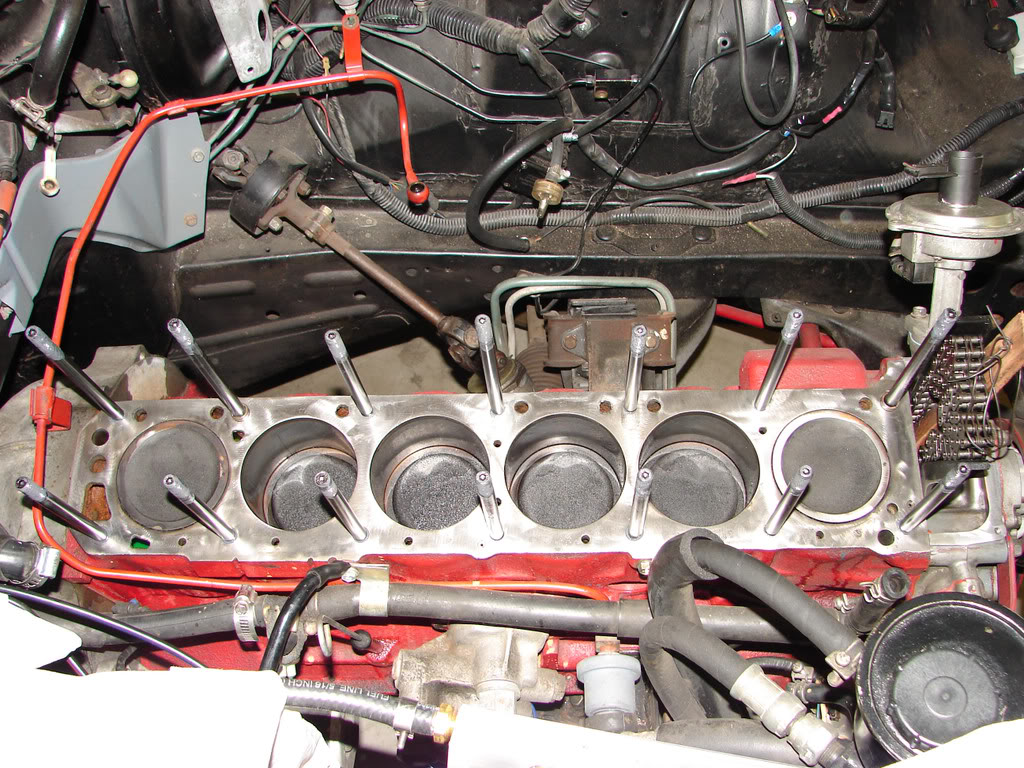

Name:  DSC04411.jpg
Views: 65
Size:  221.3 KB

Last edited by NismoPick; Sep 1, 2009 at 01:25 PM.
Old Sep 1, 2009 | 05:56 PM
  #3
skib's Avatar
This facepalm's for you!

Joined: Aug 2008
Posts: 1,175
From: The Interwebs
just look at your head, the longer studs go threw the cam towers GL
Old Sep 1, 2009 | 08:00 PM
  #4
lifegrddude's Avatar
Thread Starter
Externally Wastegated

Joined: Oct 2001
Posts: 1,220
From: San Diego
Thanks for the help you all! Whew, now that that's over, I had even more help from the kid in terms that he rubbed off my timing mark references haha. Oh man it just gets better and better. Gotta love the curiosity of 8 year olds.
