Anyone have a picture of how the coil/transistor should be wired?
How about the condenser wire?
I have fsm but cannot understand how the wires should go.

jwt install is complete. New panasports await final resto. I want her on the road, it's been 3 years rebuilding the beast.

Would like to get her running soon.
kenny.

fubar is in IRAQ



I can snap a pic in the morning





nvm, even better

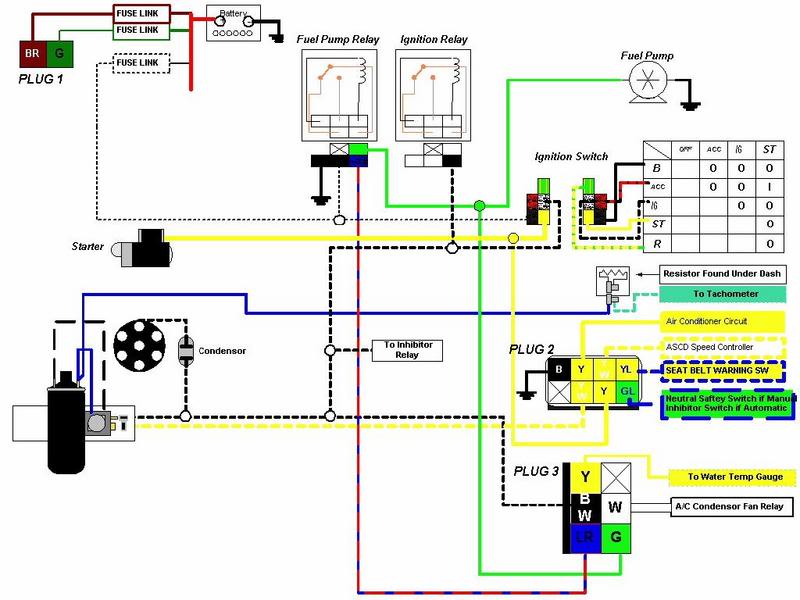

that diagram is good. I would still like to see a picture. All the wires are loose to the coil, and I'll have to get an old turbo dizzy to see where the condenser plugs in.
The dash and it's wiring is out of the car. [digital to analog swap] does this matter?
The key switch is out to be replaced and I use a screw driver to turn the ignition switch behind the key.
Does any of this relate to the engine getting spark?
Where does the ecu get its power from? The fuel pump will not run.

Thanks in advance.



got it worked out. car running.



Congrats!
