Alright so the wiring harness I cut from the factory radio has two harnesses actually, an 8-pin connector using all 8 pins and a 6-pin, using 5 of the pins. The factory manual does not specify where 2 pins of the 8 pin harness go and 3 pins of the 6 pin harness. I have no idea where to connect live or accessory terminals and cannot find anywhere on the web with answer. I have an '82 Turbo GL model with the electronic tuner.

All help is appreciated.

mrprofile

https://www.zdriver.com/forums/280zx-appearance-exterior-interior-80/aftermarket-radio-install-wiring-diagram-29053/
this may set you on the right path, i was looking at a wiring diagram, were you talking about the 3 connectors (8 pin, 6 pin and 2 pin) that plug directly into the "Radio (Electronic tuner)"?

Reptile00Seven

Yes that is what I mean, however that link only refers to the non-gl model, I've looked all over the internet and cannot find my harness.

mrprofile

I'm not sure if it differed from the non-GL, from what i understand they only had the analog radio and the digital radio. so your trying to find the wire thats constantly on, and the wire thats on when it's in accessory mode? its pretty easy to find even without a diagram, if you have a muiltimeter just test to see when each pin gets power at each state, or check a later model diagram, i believe the 83 model has a pretty good wiring diagram.

FricFrac

www.xenons130.com will give you the wireing diagram specific to your model....

Reptile00Seven

I've already checked out Xenon's page and it didn't help, however my Haynes manual came on Friday and that was pretty much I needed to see. Deck works great, 30 year old speakers aren't too good though haha.

FricFrac

That's strange since a most of the info in the Haynes manual comes from the FSM...

Reptile00Seven

They are not the same.

FricFrac

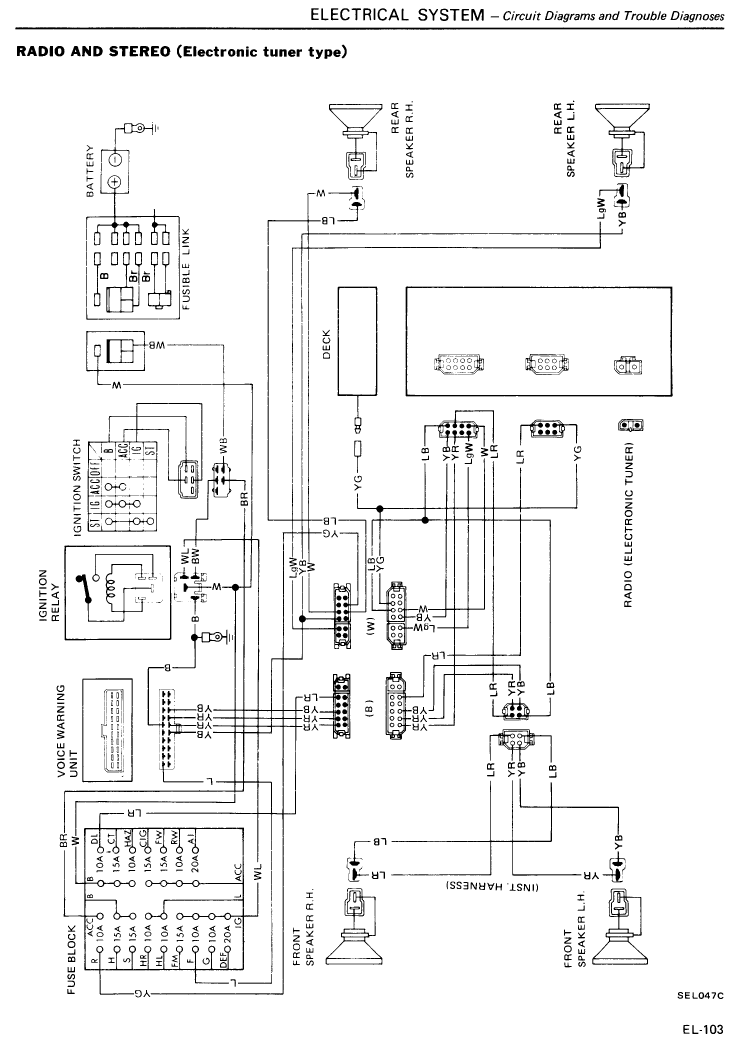

No they are not the same. The Haynes manuals reference the original Nissan FSM. Nissan is the source.... Anyhow it's on EL-130 in the 1982 FSM for a simplified block diagram and the full schematic set is there as well.

dardaratz

hey, same exact problem i have no clue what to do with the 5 pin connector wires. Did you find out what each cable does? the diagram only shows 2 of them.

Thanks

pnoyslimm

just to be clear...no one has made an aftermarket wire harness for aftermarket stereos, yet?...for OUR Z's?

dardaratz

mm ill be more specific. i got a black wire, a green wire, a green/yellow wire, a red wire with a white stripe, and a blue wire. any infos?

mrprofile

Go to harbor freight, buy a test light for seven dollars, hook the alligator clip to ground, and hook the pointy end to the battery positive, to make sure the test light works, you know its working if the light in it turns on, next individually connect the pointy end to each one of those 5 pins, the one that is always on is the one for power, the one that is only on in accessory mode is the one that tells the radio to turn on.

PredatorZ

I got an adapter from crutchfields that plugs directly into my Z31 radio harness, since I'm parting my car, I removed the entire stereo harness I made on the last install and just need to drop it in my new Z and connect it up, will be a lot easier than the 1st time. I'm running 2 external amps, so I didn't use the speaker connectors on the harness, as you can see the right white connector has the speaker wires wrapped up with tape. The black box to the right of the connector is a noise suppression device, I had one on the stereo, and a larger one on my main amp, not really needed on the sub amp.

dardaratz

wont that just tell me what the poistives are? what about the three other cables?

dardaratz

just found this, I think this guy got all the answers so figured ill post it here for people of the future to see :
By Color

Hope i helped myself ad someone else ill know tomorrow

pnoyslimm

^^^im doing this

zedsdeadbaby

THIS. Why do we have to have a DAMN adapter kit? Clip the old plug, use a simple test light to find the wires you need.

Jeez guys, automotive 101.
